Stump Grinders


Model:  S18 | S24 | S28 | 3P24 | 3P34




S18 Grinder

The S18 model uses no swing cylinder, flow goes directly to the motor for more torque and has no need for 12 volt DC power.

The S18 is mounted at 90, bring visibility to 100%, and also has a fixed frame so the operator only needs to use controls that he used-to.



* 12-25 gpm

* 24 cutting wheel







S24 & S28 Skid-Steer Grinders

The cutting wheel is powered by the hydraulic remotes on your Skid Steer and the swing cylinder is controlled with a 12v diverter valve. The off set rotor design for greater visibility and needle valve for precise swing control makes the S24 & S28 comfortable to operate.
34 teeth on a 24 cutter means less cutting for each tooth resulting in longer tooth life and smother cutting for less wear on your Skit Steer.


Units are shipped with standard skid steer quick attach, 12v cigarette light plug, and flat-face quick couplers.  The floating deflector contains the chips and debris and can be swung completely out of the way to cut close to fences.


Grease zerks and replaceable brass bushings provided at major pivot points for extended service life. Heavy tooth population makes finer mulch and allows much smoother operation.






  S24 Grinder

  • 20 to 30 gpm (works best from 23 to 30)

  • Cutting wheel is powered by the hydraulic remotes on Skid steer & swing cylinder is controlled with a 12v diverter valve.

  • Off set rotor design for greater visibility.

  • 34 teeth on a 24" wheel means less cutting for each tooth resulting in longer tooth life & smoother cutting for less wear on your skid steer.

  • Unit is shipped with standard skid steer quick attach, 12v cigarette light plug, and flat-face quick couplers.

  • Swing Cylinder ( Less surface disturbance from the tires and better overall control )



  S28 Grinder

  • 23 to 35 (42 with high flow) gpm

  • Cutting wheel is powered by the hydraulic remotes on Skid steer & swing cylinder is controlled with a 12v diverter valve.

  • Off set rotor design for greater visibility.

  • 34 teeth on a 28" wheel means less cutting for each tooth resulting in longer tooth life & smoother cutting for less wear on your skid steer.

  • Unit is shipped with standard skid steer quick attach, 12v cigarette light plug, and flat-face quick couplers.

  • Swing Cylinder ( Less surface disturbance from the tires and better overall control )



Model No.

12 gpm

15 gpm

20 gpm

25 gpm

30 gpm

35 gpm

42 gpm

S18

12"

20"

24"

28"

x x x

S24

x

6"

12"

24"

28" x x

S28

x

x"

14"

26"

36" 48" x

S28 (w/ high flow kit)

x

x"

14"

26"

36" 48" 60"

Double all Sizes for intermittent



Model: 3P24 & 3P34

The cutting wheel is powered by the PTO (540) on your tractor with the swing and lift cylinders activated by the standard remotes on the tractor as well. 34 teeth on a 24 cutter and 54 teeth on a 34 cutter means less cutting for each tooth resulting in longer tooth life and smother cutting for less wear on your tractor. Units are shipped standard with PTO shaft, CAT II, & standard quick couplers. The floating deflector contains the chips and debris and can be swung completely out of the way to cut close to fences. Grease zerks and replaceable brass bushings provided at major pivot points for extended service life. Heavy tooth population makes finer mulch and allows much smoother operation.





3P24 Grinder

  • Sure foot stabilizer for more control.

  • Heavy duty, oil bathed gearbox protected by slip clutch.

  • Swing pin in centre of frame for better visibility.

  • Heavy tooth population, makes finer mulch & allows for a smoother operation.

  • The floating deflector contains the chips & debris and can be swung out of the way to cut close to fences.

  • Grease zerks and replaceable brass bushings provided at major pivot points for extended service life.

  • Debris shot away from operator for safe operation.





3P34 Grinder
  • Sure foot stabilizer for more control.

  • Heavy duty, oil bathed gearbox protected by slip clutch.

  • Swing pin in centre of frame for better visibility.

  • Heavy tooth population, makes finer mulch & allows for a smoother operation.

  • The floating deflector contains the chips & debris and can be swung out of the way to cut close to fences.

  • Grease zerks and replaceable brass bushings provided at major pivot points for extended service life.

  • Debris shot away from operator for safe operation.

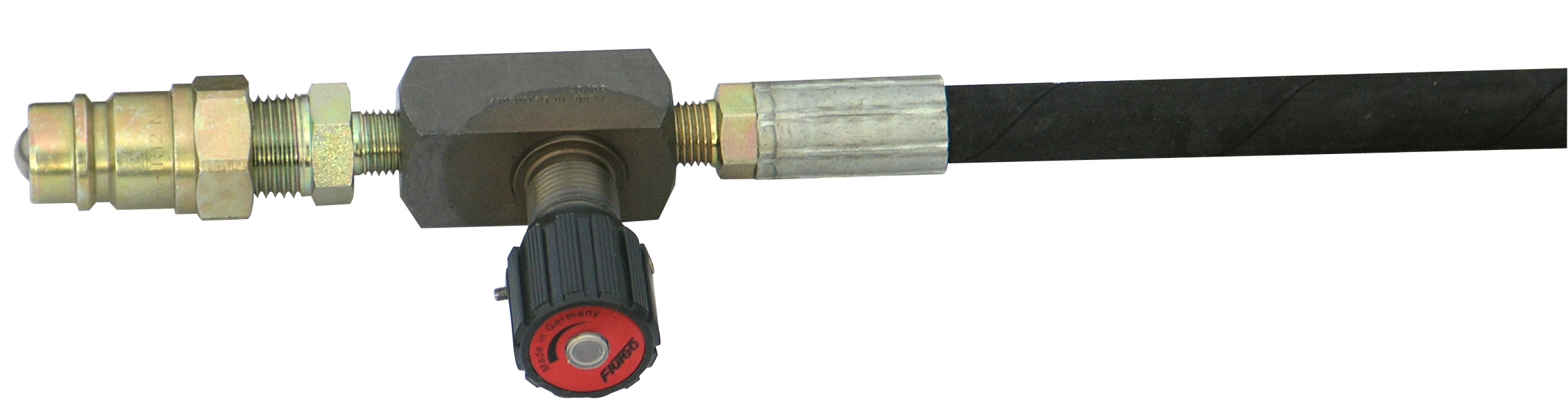

Flow Control For 3P24 & 3P34

Flow Control

Flow Control meters cutting speed and dumps on reverse.

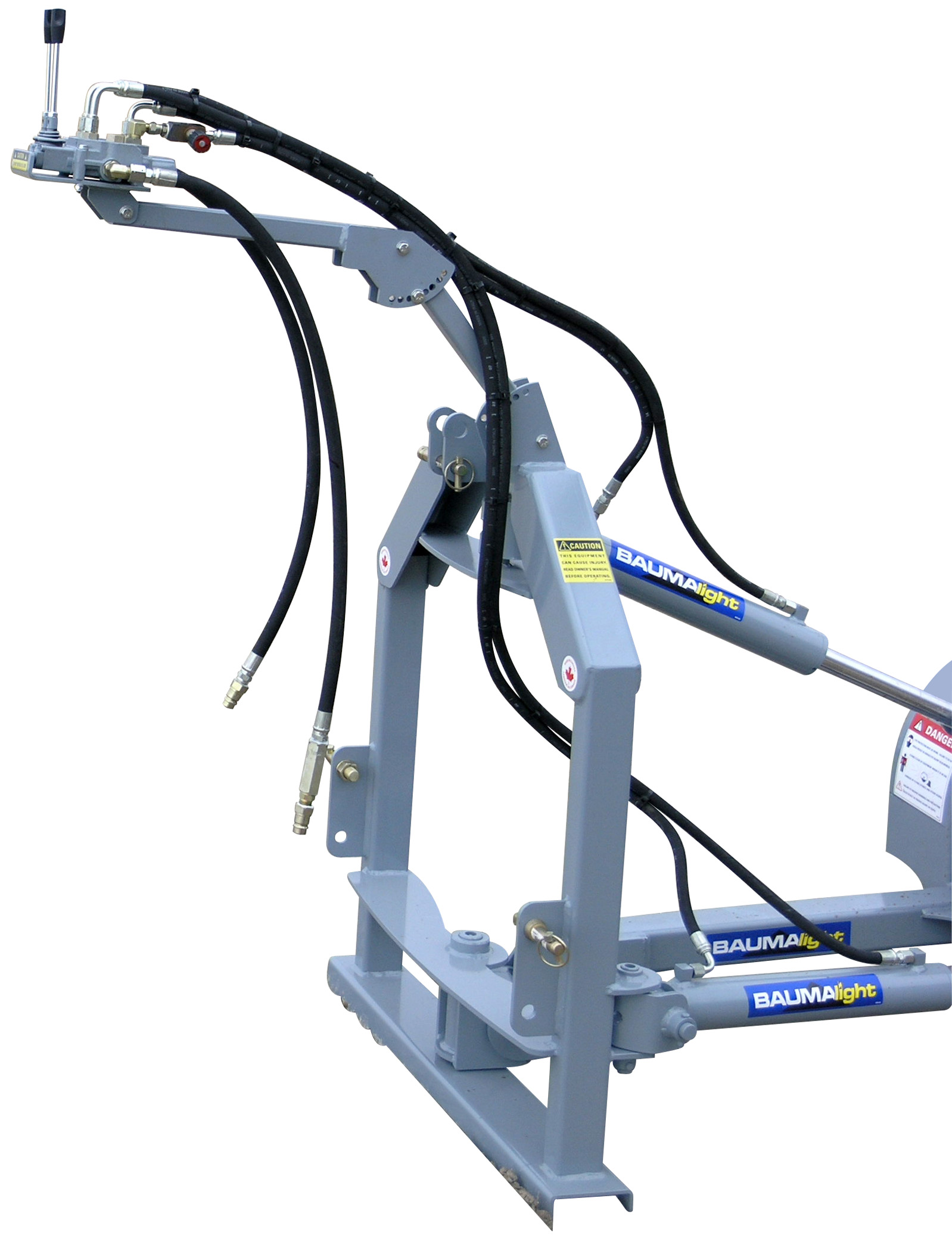

S1050 Valve Kit

S1050 Valve Kit

S1050 option, Splits one remote hydraulic into two controlled functions.

For 3P24 & 3P34

Comparison Table

Model No.

S18

S24

S28

3P24

3P34

Rotor Size

24"

24"

24"

24"

34"

Number of Teeth

34

34

34

34

54

Cutting Teeth Construction

Carbide Steel Bolt-on

Cutting Wheel Speed (rpm)

700

700

800

810

810

Cutting Height Above Ground

No Limit

No Limit

No Limit

18"

25"

Cutting Depth Below Ground

10"

10"

10"

8"

14"

Max. Cutting Depth per Pass

5"

6"

6"

6"

9"

Max. Horizontal Cut

22"

22"

22"

22"

32"

Swing Arc (degree)

0

80

80

65

65

Hub Torque (ft-lbs)

250 ft-lbs

250 ft-lbs

803 ft-lbs

Over torque protection

Relieve valve

Relieve valve

Relieve valve

Slip clutch

Slip clutch

Recommended HP Size

25-80

30-80

50-120

30-60

45-90

Hitch

Quick Attach

Quick Attach

Quick Attach

Cat I&II

Cat II

12-25

20-30

23-42

5-20

5-20

Number of Remotes Required

1

1

1

1-2

1-2

Requires 12 volt DC

no

yes

yes

no

no

Input Speed

--

--

--

540

540

Unit Weight (shipping) lbs

510

850

1,120

880

1320

Width (shipping)

48"

48"

48"

40"

48"

Length (shipping)

48"

56"

56"

42"

53"
